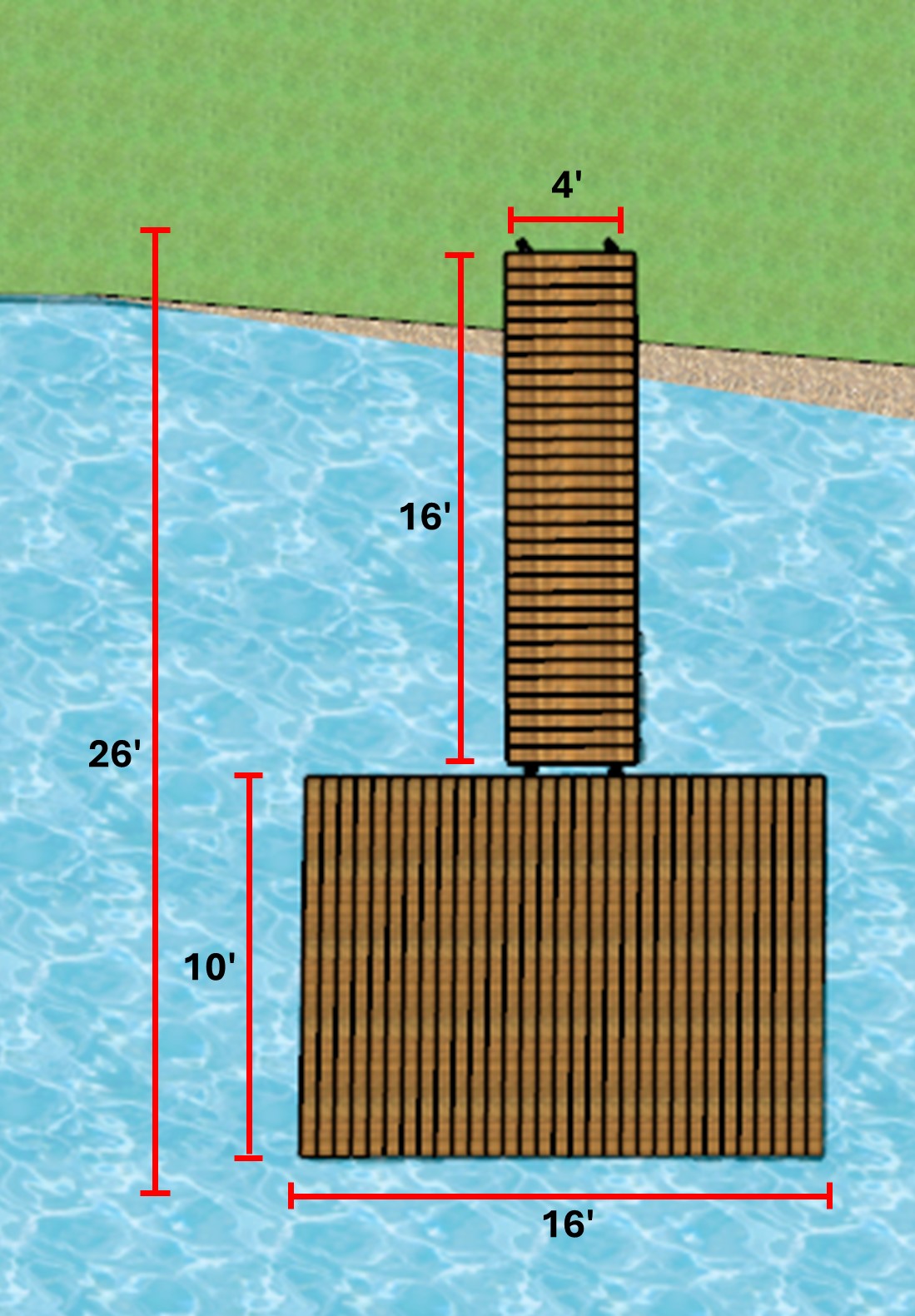

Take advantage of our complete dock package including a 4'x16' semi-floating dock and a 10'x16' floating dock from the Heavy Duty series with 16'' floats.
Everything you need to connect your dock sections is also included in the kit.

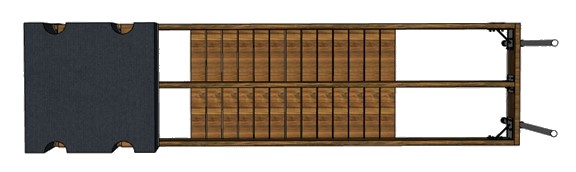

4'x16' Semi-floating dock
Material included:
4 x 30030 - HD Reinforced Inside corner
6 x 3300 - HD Backer plate
5 x 30060 - 1/2" x 3" Carriage Bolts (pkt.8)
1 x 79003 - HD Double joist kit
2 x 79-001 - HD Big-T Connector hinges
2 x 30021 - HD Side leg holder
2 x 1112-4 - Galvanized leg pipe 1-7/8'' x 4'
2 x 1115 - PVC Cap 1-7/8"
1 x C4416 - Eagle Floats 48"x48"x16"
1 x 30061 - Hex. Bolts for floats (pkt.4)

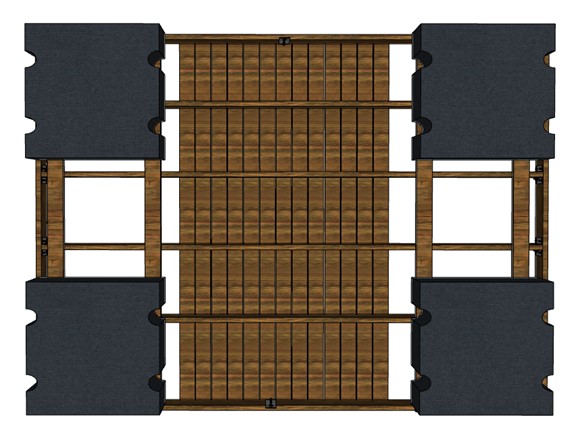

10'x16' Floating dock
Material included:
4 x 30030 - HD Reinforced Inside corner
8 x 3300 - HD Backer plate
5 x 30060 - 1/2" x 3" Carriage Bolts (pkt.8)
4 x 79003 - HD Double joist kit
2 x 2003 - HD Anchor chain plate
2 x 30050 - HD Backer plate
1 x 1109 - 2x15' Chain 5/16"
4 x C4416 - Eagle Floats 48"x48"x16"
4 x 30061 - Hex. Bolts for floats (pkt.4)
We also provide you with the DIY plans as well as the sizes and quantities of wood to purchase.
(Wood not included)
